cyclone separator / grit / for wastewater treatment
DSP WAMGROUP S.p.A

{{requestButtons}}

Characteristics

  • Technology:

    cyclone

  • Separated substance:

    grit

  • Application domain:

    for wastewater treatment

Description

The DSP Grit Trap is used to remove sand from sewage in waste water treatment plants.

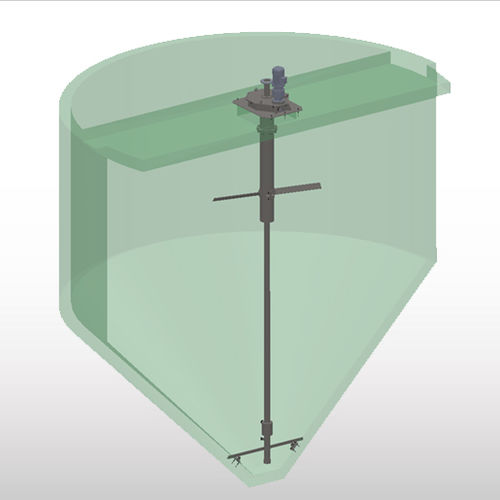

The equipment consists of a drive unit complete with a central bearing, two steel blades operated by an impeller and a central air lift pipe.

Function
Sewage enters the concrete tank tangentially. It is then moved thanks to two blades operated by a drive unit installed on the concrete walkway. The circular movement allows sand to settle on the bottom of the tank.
The air lift is composed of a flanged pipe with a hydro-extractor fitted in its end. The air lift operates through compressed air, thus lightening the sand-water mixture and efficiently sucking sand from the bottom of the tank.
