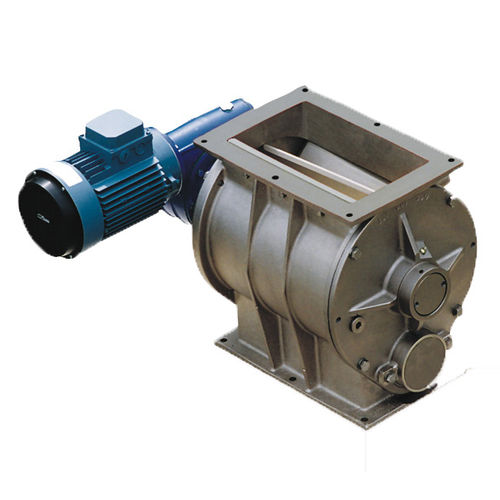

Pneumatic conveying rotary valve RVC series

for foodfor plasticsfor pharmaceutical applications

RVC Drop-Through Rotary Valves with oblique V-shaped cross section compartments are a highly efficient solution for accurate feeding of powders or granules in a number of industries. Description RVC Drop-Through Rotary Valves consist of a tubular cast iron or stainless steel casing, a horizontally mounted rotor with a certain number of oblique V-shaped cross section compartments, a drive unit and casing covers at both ends. Function Two compartments at a time of the continuously turning rotor are filled up with material entering through the inlet at the top of the Rotary Valve. After less than half a turn material falls through the bottom outlet opening having the same cross section as the opposite inlet. Features • Feed rates: 5 ~ 80 litres per revolution • Different drives for different rotation speeds • Various materials and treatments available according to product handled • Maximum differential pressAvailable as ATEX version, Zone 22ure: 0.7 bar (11.6 PSI) Benefits • Robust, compact design • Standard open rotor with bevelled edges (except RVS80) • Easy access to all internal mechanical parts
