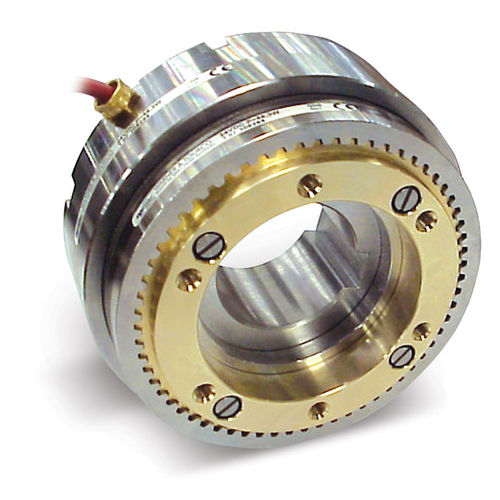

Toothed clutch E320 series
electromagnetic

toothed clutch
toothed clutch
toothed clutch
toothed clutch
Add to favorites
Compare this product


Characteristics

Type
toothed
Operation
electromagnetic
Torque

Max.: 25,600 Nm
(18,881.591 ft.lb)

Min.: 20 Nm
(14.7512 ft.lb)

Rotational speed

Max.: 5,000 rpm
(31,415.93 rad.min-1)

Min.: 1,200 rpm
(7,539.82 rad.min-1)

Power

Max.: 248 W

Min.: 15 W

Description

The reliable, electrically-operated E320 toothed clutch provides high torque capacity in a small package. Units are activated by power-on and designed for engagement at very low speeds and random operation while serving as a positive coupling drive without slipping. Features Require no wear adjustment Fixed inductor mounted on ball bearings Electrically-operated 24 or 103, 5 VDC depending on size Sealed bearings for dry operation Models with non-sealed bearings for oil environments are available
