Chemical pump G05
oilairfor natural gas

chemical pump
chemical pump
chemical pump
Add to favorites
Compare this product


Characteristics

Fluid
for chemicals, oil, air, for natural gas
Technology
double-diaphragm
Mobility
stationary
Domain
industrial
Applications
discharge, distribution, recirculation
Material
stainless steel, aluminum, PTFE
Other characteristics
flow
Flow

Min.: 0 us gal/min
(0 l/min)

Max.: 15 us gal/min
(56.78118 l/min)

Pressure

7 bar
(101.526 psi)

Head

70 m
(229'07" )

Length

261 mm
(10 in)

Width

175 mm
(6.89 in)

Height

291 mm
(11.46 in)

Weight

7 kg, 10 kg
(15.43 lb, 22.05 lb)

Description

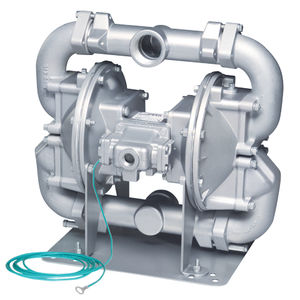

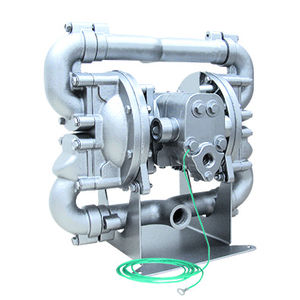

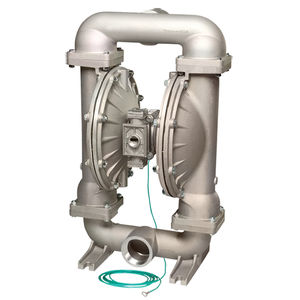

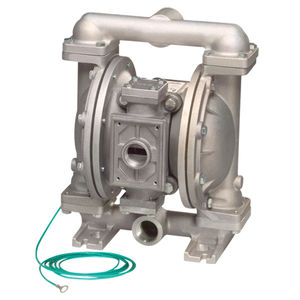

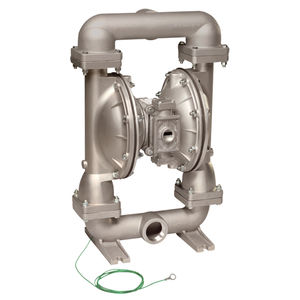

For over 50 years, SANDPIPER has been the leading industry innovator of air- and gas-operated double-diaphragm (AODD and GODD) pumps, featuring the broadest range of products to meet the needs of a wide variety of applications. Traditional AODD pumps are designed for use with air only. Over the years, oil and gas operators have opted to power their diaphragm pumps with easily accessible natural gas. The application of AODD pumps driven by natural gas created a unique set of safety requirements that previously did not exist. In 2003, SANDPIPER partnered with the Canadian Standards Association (CSA®) to lead the development of the first-ever safety certification for gas-operated double-diaphragm (GODD) pumps. A Safe and Reliable Pumping Solution Industry-leading performance and market-specific technology ensures a safe and reliable pumping solution for use in upstream and midstream applications. Utilizing robust aluminum or stainless castings, SANDPIPER G-Series pumps handle both sweet and sour gas while allowing for complete groundability. Commonly used in glycol recirculation, flare knockout drums and day tank transfers of oils, the ½" dual-power G-Series pump provides discharge pressures up to 100 psi and class-leading flow rates up to 15 gpm. Reduce Your Downtime by as Much as 90% SANDPIPER offers an exclusive externally serviceable air distribution system. When dirty air enters an AODD/GODD pump, it will require frequent servicing of the air distribution system.
