wastewater pump / for chemicals / electric / peristaltic
701R series Watson-Marlow Fluid Technology Group



  • Media:

    for wastewater, for chemicals

  • Operation:


  • Type:


  • Domain:

    chemical, for the food and beverage industry, for the mining industry

  • Other characteristics:

    OEM, rugged, rugged, transfer, metering

  • Flow:

    Max.: 8.4 us gal/min (31.7975 l/min)

    Min.: 0 us gal/min (0 l/min)

  • Pressure:

    Max.: 2 bar (29.008 psi)

    Min.: 0 bar (0 psi)

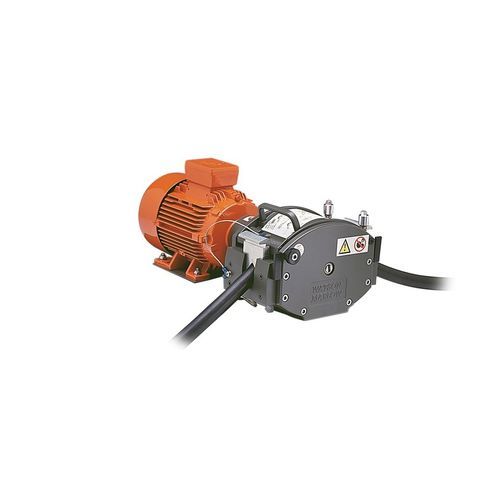

The WATSON MARLOW 701FB/R series baseplate pumps feature LoadSure elements and offer quality industrial pumping with all the pumphead features of case drives, while still being a cost-effective choice. They can deliver flows up to 8.4 GPM (1,900 l/h) with maximum pressure of 2 bar (30 psi). They can operate on multiple speeds: 45 RPM, 134 RPM, 232 RPM and 348 RPM, but additional speeds can be requested and customized. They feature tubing in five bore sizes and six materials, chemical resistance, track that is easily unlockable through the use of general tools, and driven occlusion rollers, that guarantee durability. The 701FB/RE model additionally features LoadSure tubing elements with industrial cam-and-groove connectors or sanitary tri-clamp-style connectors.
