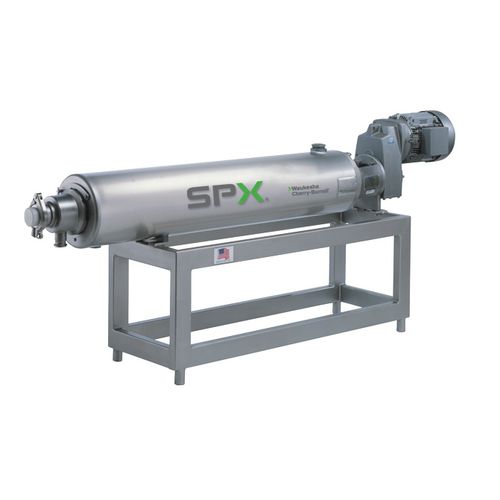

scraped surface heat exchanger / liquid/liquid
Votator II® Waukesha Cherry-Burrell

{{requestButtons}}

Characteristics

  • Type:

    scraped surface

  • Fluid:

    liquid/liquid

Description

For more than 80 years, Votator scraped surface heat exchangers have been replacing slow, inefficient batching operations with more uniform, controllable and repeatable continuous processing. The Votator II incorporates the most popular features of the Thermutator and Votator lines, making it extremely easy to maintain.

The Votator II and the Extra Heavy Duty Votator II replace the Thermutator and standard Votator units, and is also available as a vertical unit.

3A, ASME,and PED Certified
Single and Double Mechanical Seals

Greater material choices for various applications (ceramic, carbon, silicon carbide, and tungsten carbide)
Available in standard and narrow faces
Ease of maintenance and lower cost of ownership
PEEK™ Blades


100% PEEK™ - no filler or inserts
Available in metal detectable version
Integral Gear Motor Drive

Gear drive is directly coupled to the mutator shaft eliminating the need for a secondary drive shaft and bearing block
Overall length of heat exchanger is reduced by 20 - 25%
Easy to maintain and self-aligning
Available with up to 30 horsepower for handling the most viscous products
Removable Heat Transfer Tube


Can be serviced without disturbing hydraulic lifting system, utility piping, or the drive assembly
Flange bolted to the jacket on the non-driven end, allows for quick removal
Reliable double o-ring seal on each end eliminates the need for an expansion joint
Heat Transfer Area


Units are available with up to 11 sq ft of heat transfer area (6 X 84)
