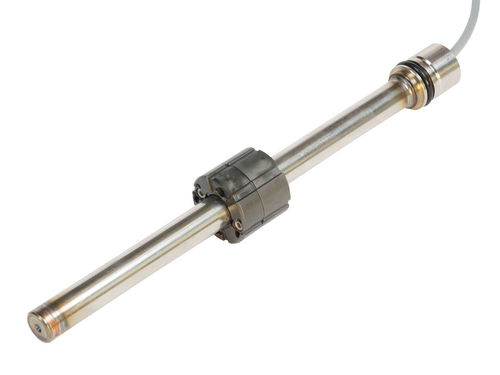

linear position sensor / magnetic / potentiometer / analog
50 - 1 000 mm, max. ±0.35 % | LMI12-SE, LMI12-SL WayCon Positionsmesstechnik GmbH

Characteristics

  • Type:

    linear

  • Technology:

    magnetic, potentiometer

  • Output signal:

    analog

  • Other characteristics:

    rectangular, cylindrical

Description

The LMI12-SE series, and the LMI12-SL series are manufactured by WayCon, and are linear potentiometers that are ideal for use in hydraulic cylinders. The series have an utmost working pressure of up to 250 bar together with a displacement speed of ≤5 m/s. The models also have a linearity rating of up to ±0.35%.

The units are enclosed in a pressure-sealed housing made of steel, and has an ingress protection rating of 67.
