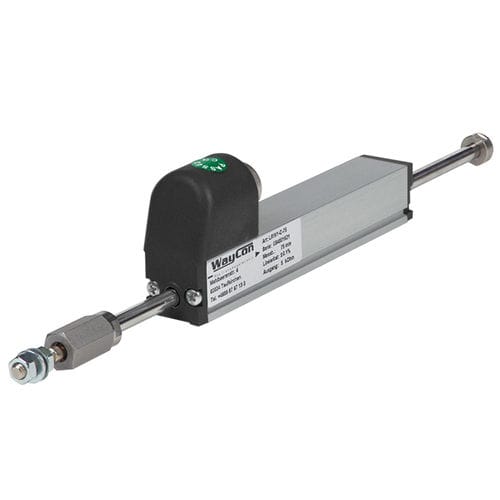

linear position sensor / hybrid potentiometer / analog / rectangular
LRW1 WayCon Positionsmesstechnik GmbH

{{requestButtons}}

Characteristics

  • Type:

    linear

  • Technology:

    hybrid potentiometer

  • Output signal:

    analog

  • Other characteristics:

    rectangular

  • Measuring range:

    Max.: 150 mm

    Min.: 25 mm

Description

The LRW1 model is manufactured by Waycon, and is a liner potentiometer that has inexpensive and reliable way to measure distances or positions. It has rectangular type in through-rod structure with double rod support, which ranges from 25 to 150 mm. It has maximum linearity of ±0.05 %, and has an IP40 class of protection.

The unit has displacement speed of ≤10 m/s, and can operate at -30 °C to +100 °C. It is made up of aluminium housing and stainless steel rod.
