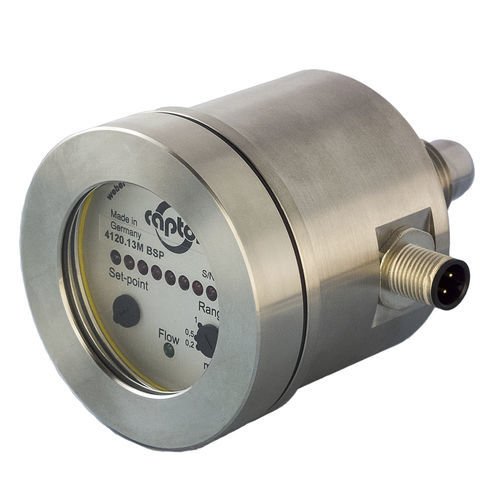

calorimetric flow monitor / for liquids / digital / with LED display
flow-captor 412X.1XM weber Sensors GmbH

{{requestButtons}}

Characteristics

  • Technology:

    calorimetric

  • Fluid:

    for liquids

  • Other characteristics:

    digital, with LED display, high-temperature, compact, with display, stainless steel, insertion, threaded, rugged, IP67

  • Applications:

    industrial, for wastewater treatment

  • Process pressure:

    Min.: 0 bar (0 psi)

    Max.: 100 bar (1,450.38 psi)

  • Process temperature:

    Min.: -20 °C (-4 °F)

    Max.: 80 °C (176 °F)

Description

flow-monitor in a rugged stainless steel version (full encapsulation)
for liquids (transistor output, VDC)

4120.1xM
water-based liquids

4121.1xM
oil-based liquids

Other media on request

Electrical output: transistor output

Supply voltages:
18-30 VDC, 10,5-36 VDC, 19-72 VDC

Operating principle: calorimetric (thermal)

Measuring range:

0-20 cm/s up to 0-300 cm/s (water)
0-30 cm/s up to 0-300 cm/s (oil)
fully adjustable

Protection class: IP67

Options: probe lengths, wetted materials, high temperature

Pipe connections:
1/4 or 1/2 "BSP also NPT equivalent
