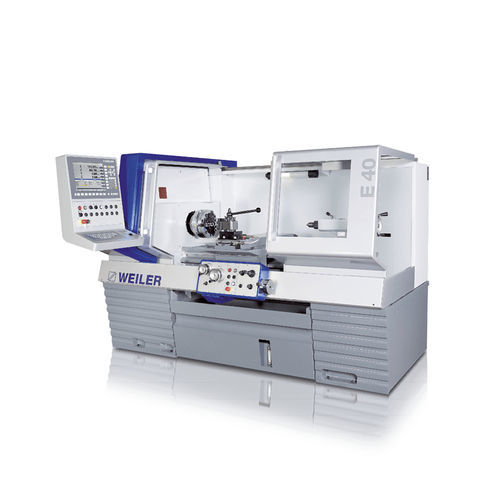

Conventional lathe E 40
horizontal2-axishigh-productivity

conventional lathe
conventional lathe
conventional lathe
conventional lathe
Add to favorites
Compare this product


Characteristics

Control type
conventional
Spindle orientation
horizontal
Number of axes
2-axis
Other characteristics
high-productivity, compact, large, cutting, milling, milling machine, spindle
Diameter

435 mm
(17.13 in)

Spindle speed

Max.: 3,500 rpm
(21,991.149 rad.min-1)

Min.: 1 rpm
(6.283 rad.min-1)

Rapids on X

4,000 mm/min
(3 in/s)

Rapids on Z

8,000 mm/min
(5 in/s)

Weight

3,400 kg
(7,496 lb)

Description

The compact and energy-efficient power pack in the WEILER E-Series range. The allrounder for high productivity applications – minimum space requirements with maximum cutting performance. A smart range of optional features ensure a high level of efficiency for turning through to milling operations. High quality, energy-efficient, precise and universally usable. It impresses through: State-of-the-art control and drive technology Straight-forward operating and programming Extreme accuracy Durability User-friendly ergonomics Extremely small footprint and an extensive range of accessories. Distance between centres 1000 mm Large speed range Spindle bore 66 mm Ergonomically tilting display unit with 15” TFT screen Ingenious, user-friendly WEILER graphical user interface Operating panel with handwheels moves with the bed slide to enable precise manual machining “e-TIM” energy conservation system minimises power consumption Machine accuracy to DIN 8605
