impact crusher / stationary / primary / horizontal-shaft
Trio® APP series Weir Minerals

{{requestButtons}}

Characteristics

  • Technology:

    impact

  • Mobility:

    stationary

  • Other characteristics:

    primary, horizontal-shaft

  • Capacity:

    Max.: 1,250 t/h (765 lb/s)

    Min.: 180 t/h (110 lb/s)

Description

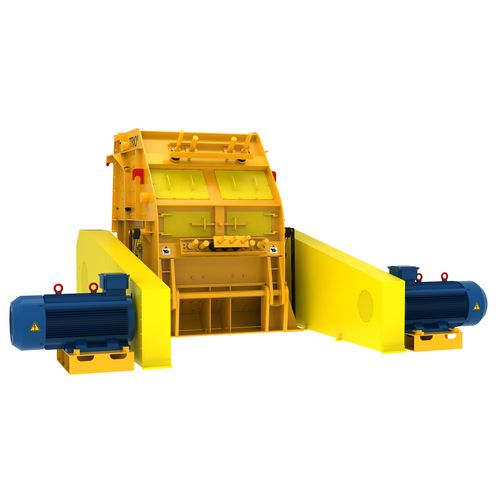

Trio® APP Series Horizontal Impact Crushers are designed for high volume and high reduction ratio impact crushing. They are particularly suitable for limestone or in applications where typical compression crushers such as Jaw and Cone would have difficulty in dealing high clay content or meet strict particle shape requirements. A Trio® APP Horizontal Impact Crusher can generate a product that does not need an additional stage of secondary crushing and can be fed directly a fine crushing and screening plant. These crushers are valued for their versatility under a wide range of operating conditions. Key features/benefitsRobust steel coil springs: provide additional tension on the secondary curtain to maintain a consistent gap setting ensuring a uniform product. Shim stack provides easy apron gap setting adjustment and Bevel washers are very heavy duty type of spring. Access doors on the top, front and sides make inspection and routine maintenance safe and simple. Stripper bar removal and replacing is done outside of the machine via a bolted access cover. Hydraulic assisted crusher opening for inspection and maintenance with safety locks.
