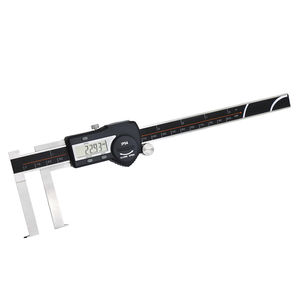

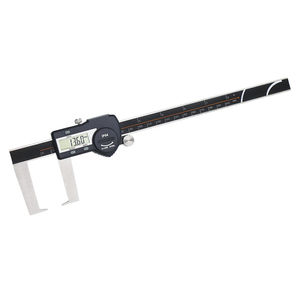

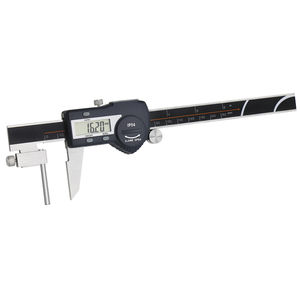

digital caliper / special / stainless steel / with data output
SHAHE/5118-300 5-300mm 0.01mm ±0.08mm/Digital Caliper Wenzhou Sanhe Measuring Instrument Co., Ltd



  • Type:

    digital, special

  • Material:

    stainless steel

  • Other characteristics:

    with data output

  • Measuring capacity:

    Max.: 300 mm

    Min.: 5 mm


Digital center distance caliper is equipped with special pointed jaws for outside measurement only. It is specially designed for hole center-to-center measurements, and can also measure form an edge to a hole center. Hole center-to-center should be in the range 5-300mm.

Technical Data
1. Measuring range: 5-300mm
2. Resolution: 0.01mm
3. Accuracy: ±0.08mm

1. Capacitive grid transducer: Glass fixed grid
2. Protection: IP54
3. Display: LCD
4. Data Output: Yes
5. Max.response speed: 3 meters/second
6. Battery: 3V CR2032 environmental lithium battery
7. Battery life: Approx. 1 year under normal use

1. Hardness stainless steel main scale and measuring jaws.
2. Stable and reliable performance, accurate readout, no overspeed error.
3. Much better glass fixed grid.
4. Fine cutting edge and level & smooth depth groove.
5. Top grade exquisite workmanship.
6. Easy & smooth to slide comfortable operation feeling.
