digital force gauge / portable / compact

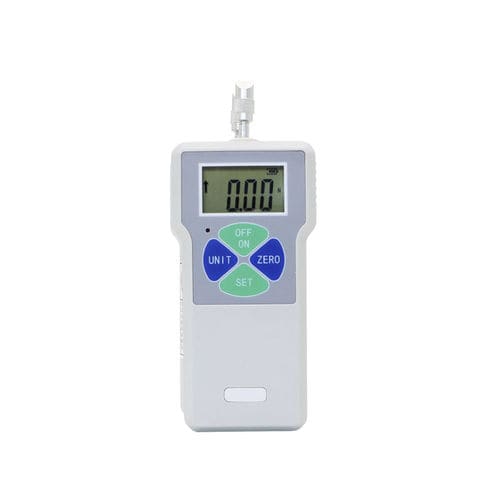

SHAHE/ SF Series /Portable Digital Push Pull Force Gauge Wenzhou Sanhe Measuring Instrument Co., Ltd

{{requestButtons}}

Characteristics

  • Type:

    digital

  • Options and accessories:

    portable, compact

Description

Technical Data:

The Sensor: Sensor Inside
Precision: ±0.5%
Power: 3.7V lithium battery
Charging Time: 4-6 hours
Battery Life: ≥300 times
Charger: Input: AC 100-240V 50-60Hz Output: DC 5V 1000mA
Working Temperature: 5 ℃-35℃
Transportation Temperature: -10℃ -60℃
Relative Humidity: 15% -80% RH

1.Model: SF-2
Max. Load Value: 2N/0.2kg/0.45Lb
Load Value: 0.001N/0.001kg/0.001Lb


2.Model: SF-3
Max. Load Value: 3N/0.3kg/0.65Lb
Load Value: 0.001N/0.001kg/0.001Lb


3.Model: SF-5
Max. Load Value: 5N/0.5kg/1.1Lb
Load Value: 0.001N/0.001kg/0.001Lb


4.Model: SF-10
Max. Load Value: 10N/1kg/2.2Lb
Load Value: 0.01N/0.001kg/0.001Lb


5.Model: SF-20
Max. Load Value: 20N/2kg/4.5Lb
Load Value: 0.01N/0.001kg/0.001Lb


6.Model: SF-30
Max. Load Value: 30N/3kg/6.5Lb
Load Value: 0.01N/0.001kg/0.001Lb


7.Model: SF-50
Max. Load Value: 50N/5kg/11Lb
Load Value: 0.01N/0.001kg/0.001Lb


8.Model: SF-100
Max. Load Value: 100N/10kg/22Lb
Load Value: 0.1N/0.01kg/0.01Lb


9.Model: SF-200
Max. Load Value: 200N/20kg/45Lb
Load Value: 0.1N/0.01kg/0.01Lb


10.Model: SF-300
Max. Load Value: 300N/30kg/65Lb
Load Value: 0.1N/0.01kg/0.01Lb


11.Model: SF-500
Max. Load Value: 500N/50kg/110Lb
Load Value: 0.1N/0.01kg/0.01Lb
