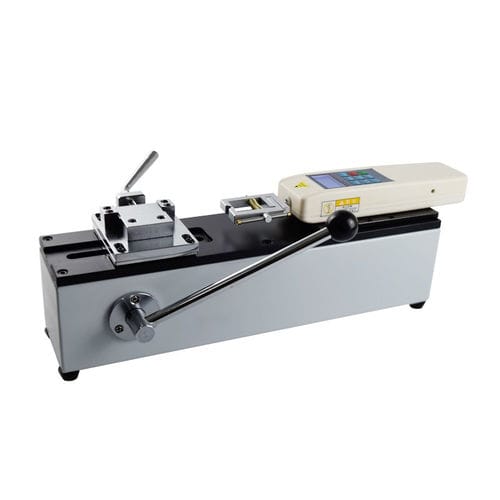

The ADL terminal tensile tester is a testing device developed by our company for the wiring harness and electronics industry. It is designed to detect the pulling force of various wiring harness terminals. It can be equipped with NK and HF push-pull force gauges and special fixtures. This instrument has the characteristics of small equipment, accurate control, high measurement accuracy, convenient clamping of test pieces, and simple operation. It is the ideal equipment for wire harness manufacturers to ensure product quality.
Horizontal installation
•Manual operation, simple and stable.
•This machine can be installed on the table (platform) to make the frame more stable to use.
•Size: 45cm×26cm×16cm
•Effective stroke: 50mm
•Rated load: 500N
•Net weight: 10.6Kg
Push-pull force gauge of the instrument:
The general standard configuration is a digital display push-pull force meter HF-500. (Can also be equipped with pointer push-pull force meter NK-500, the price is different)
Digital display push-pull force gauge
Model: HF-500.
B. Maximum load: 500N (Kg, N and ib three units can be automatically converted).
C. Resolution: 0.01N.
D. Accuracy: ± 0.5%.
E. Output interface: RS 232 nine-hole socket.
F. Power supply: Charging power supply: 220V / AC; battery continuous working time: 6-8 hours
G. Stability: Temperature drift: 0.2uV / ℃ (0 ~ 60 ℃); Zero drift: ≤ 0.1% / 8 hours / FS.
H. Calibration range: full-scale calibration.
I. Ambient temperature: 0 ~ + 60 ℃.
J. Ambient humidity: ≤ 80%.
K. Allowable overload: 150%.
L. Power supply method: No. 5 nickel-cyanide battery pack / 220V AC for 4 to 6 hours.
⑵ Pointer push-pull force gauge
M. Model: NK-500.
