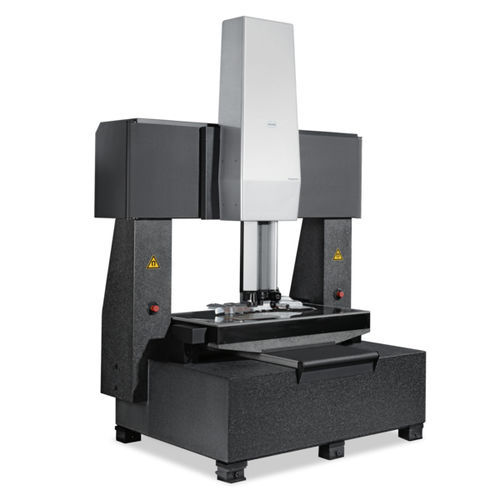

Gantry coordinate measuring machine Inspector® FQ

bridgefor automotive applicationsmulti-sensor

Fast measurement results for shopfloor and measuring room Thanks to its high measuring speed, the Inspector® FQ opens up applications that are out of the question for conventional coordinate measuring machines due to excessively long measuring times. The flexible machine replaces gauges or manual bench gauges, for example, when inspecting large sheet metal and plastic parts. Areas of application are wherever high measuring speed is required, e.g. in the electronics industry, in tool and machine construction or in the automotive, plastics and rubber industries. • Highest positioning speed due to wear-free linear drives • Mechanically mounted guideways for harsh environmental conditions • Integration of further sensors to a multi-sensor coordinate measuring machine and thus increased flexibility at high measuring speed Accuracy Permissible length measurement error up to 2.5 µm • ABS blocks • Furniture fittings • Turned parts • Die-casting workpieces • Springs • Flat gaskets • Bottles • Gear housing • Inhalers • Insulin pens • Hypodermic needles • LED arrays
