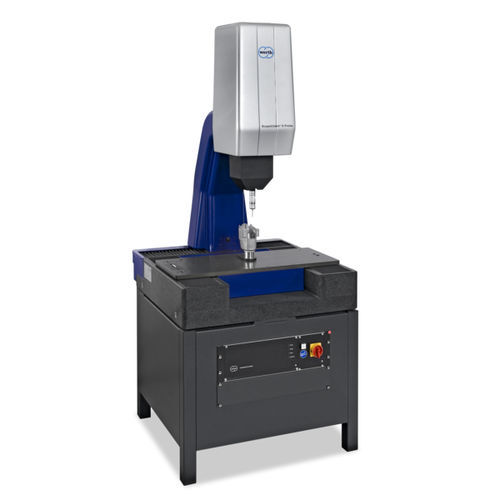

Manual coordinate measuring machine ScopeCheck® S Probe
gooseneckfor gearshigh-precision

manual coordinate measuring machine
manual coordinate measuring machine
manual coordinate measuring machine
Add to favorites
Compare this product


Characteristics

Control
manual
Structure
gooseneck
Applications
for gears
Other characteristics
high-precision, compact
X travel

400 mm, 600 mm
(16 in, 24 in)

Y travel

200 mm, 400 mm
(8 in, 16 in)

Z travel

200 mm, 400 mm
(8 in, 16 in)

Description

The entry into tactile CNC metrology for shopfloor and measuring room Manual bench gauges, gages and conventional production measuring stations can be ideally supplemented or even completely replaced by the Werth ScopeCheck® S Probe. The ScopeCheck® S Probe is also suitable for areas of application that were previously reserved for expensive and complex coordinate measuring machines, thanks to its highly accurate 3D scanning probe and fast CNC continuous path control. • The hard stone based measuring machine does not require any air supply • Mechanical precision guides as well as temperature compensation guarantee reliable measurement results even under adverse environmental conditions • The ergonomic graphic user interface with a graphic user interface allows the user to determine sizes by simply clicking on the graphic • Password protection gives the operator access to the measurement software according to his level of qualification • The modular design principle allows easy expansion for future requirements Accuracy Permissible length measurement error up to 2.4 µm • ABS blocks • Furniture fittings • Turned parts • Bottles • Joint implants • Inhalers • Syringes
