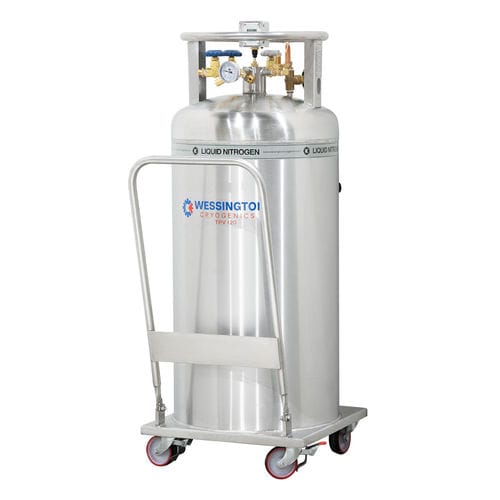

Cryogenic tank TPV series

transportfor liquidsnitrogen

The TPV Series of self pressurising cryogenic vessels for liquid nitrogen and argon (liquid oxygen on request) are suitable for a host of applications within the industrial, medical, research & cryo-biological fields. Each vessel has been designed to automatically maintain pressure at a pre-set level using the integral pressure building circuit. Features :- • Dual liquid fill / decant valves for convenience • Colour coded valves • Automatic pressure building circuit • Mounted on square base with high quality castors (2 with foot brake) for greater stability (PV-1000 & PV-2000 with Pallet Base) • Tricock to prevent overfilling • Valve protection ring handle • Tow bar on TPV-120 to TPV-400 • Standard relief valve setting : 1.5 bar (options upto 4.0 bar) • TPED Approved (PV-1000 / PV-2000 PED Approved Only) for the transportation of liquid on public highways throughout Europe • Non European approvals available on request • Stainless steel construction • Readily adapted for gas withdrawal applications • Electronic Contents Gauge now fitted as standard to PV Series cryogenic vessels (float or DP gauges available on request)
