Storage tank ISO PACK 4000

transportnitrogenfor liquified gas

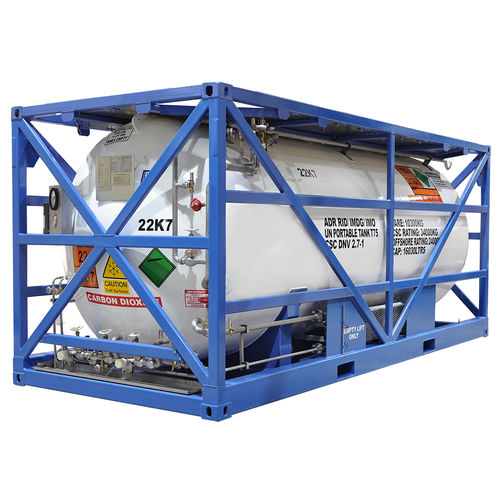

The ISO PACK 4000 tank offers the cryogenics industry a robust, fully framed, portable, 20ft ISO container designed for transporting product by road, rail or sea. This T75 UN tank has approvals for road, rail & sea transport. It also has CSC, DNV 2.7-1 and EN 12079 approval, and is designed, manufactured/tested for storing & transporting liquid nitrogen, argon and oxygen, and can often be seen on offshore supply vessels being transported to oil production platforms all over the world (subject to offshore weight & crane handling restrictions). The tank is produced with working pressure of 3.17 Bar (45psi/ASME), 6 Bar (90 psi) with option up to 17 Bar (250 psi) and can be used for the storage and transportation of liquid nitrogen. The ISO PACK also features high vacuum super-insulation, stacking capability 9 units high to ISO 1496-3 (192,000 kg max), full set of decals (including logos where supplied by customer), integral pressure building system, document holder and various pipe work and valve options to offer maximum versatility to end user and operator. A CO2 format tank can also be supplied, plus higher pressure versions also available on request. Special Features :- - Lower roof plates to allow stacking with slings / shackles remaining in situ - Dual trycock valves - Optional Hastings vacuum check valve
