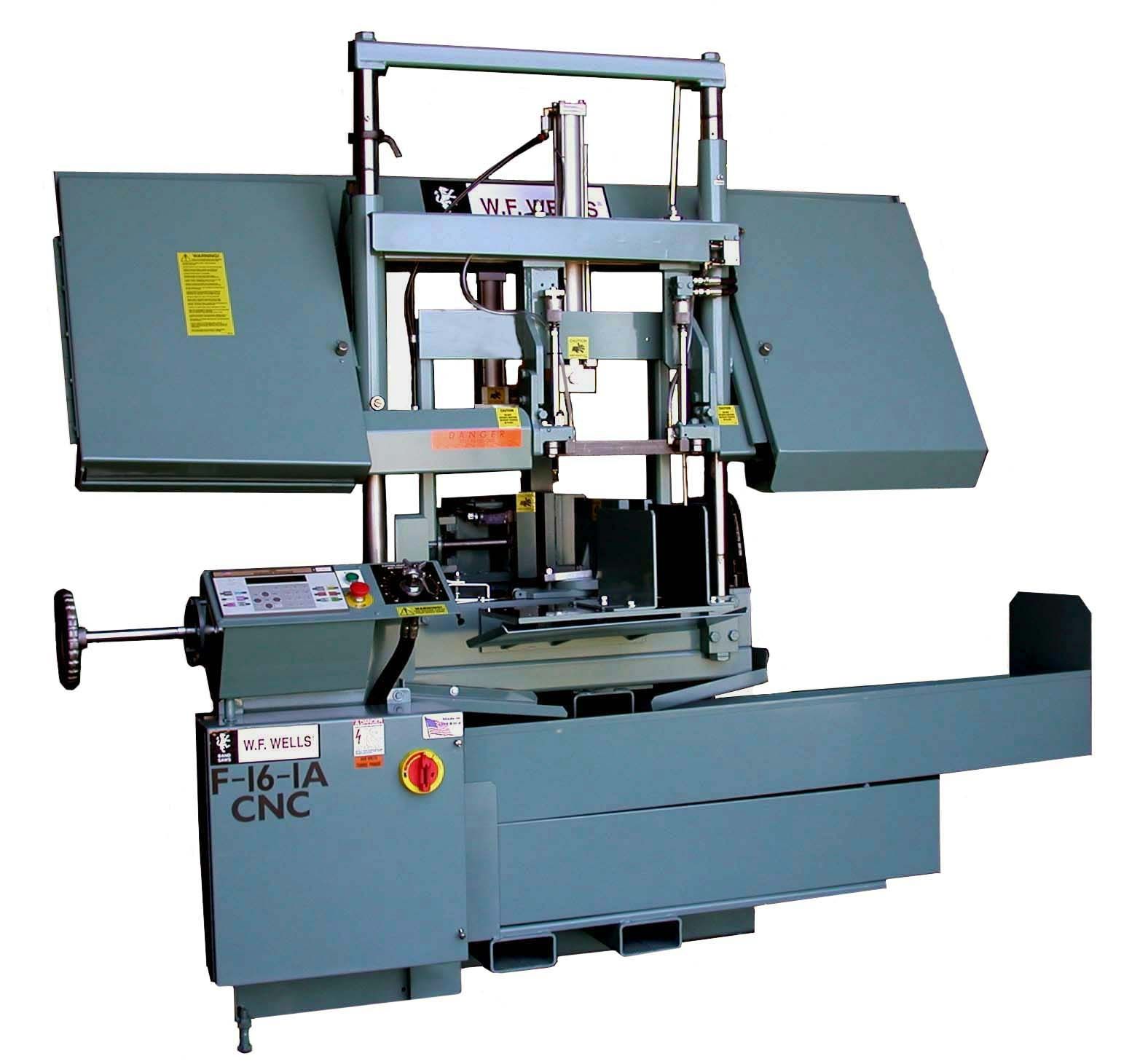

CNC automatic dual column horizontal band saw
F-16-1A CNC WF Wells Inc

Specifications
Capacity ............................. Rectangular at 90 16" High x 18" Wide. Round 16" Diameter
Weight Capacity................. 5,000 lbs
Blade Speed ...................... 60-425 SFPM
Blade Size.......................... 1¼" X .042" X 15'
Blade Guide ....................... Roller Guides with Carbide Inserts
Vise .................................... Air, 8½" High
Bandwheel Size ................. 20"
Blade Tension .................... Manual with Indicator
Blade Drive ........................ 7½ HP Variable Speed
Sawing Force ..................... 30-120 lbs
Coolant Capacity................ 15 Gallons
Hydraulic Capacity ............. ¾ Gallon
Hydraulic Drive................... ¾ HP Motor
Work Height ....................... 35"
Barfeed Projection ............. Hydraulic 0-25" CNC Controlled
Shuttle Indexes .................. Unlimited
Projection Accuracy ........... +/-.002"
Remnant End ..................... 12"
CNC Programmable Controller with Digital Membrane Screen
Machine Diagnostics & Programming Prompting
99+ Job Selection
Automatic Kerf Compensation
Blade Break/Stall Switch
Fork Lift Pockets in Base
Tipoff Worktable................. 19½" Wide x 15½" Deep
Shipping Weight................. 3,250 lbs
Electrics ............................. Wired to NFPA 79 Machine Tool Standards
Machine Dimensions.......... 90" Length x 93" Width x 86" Height
