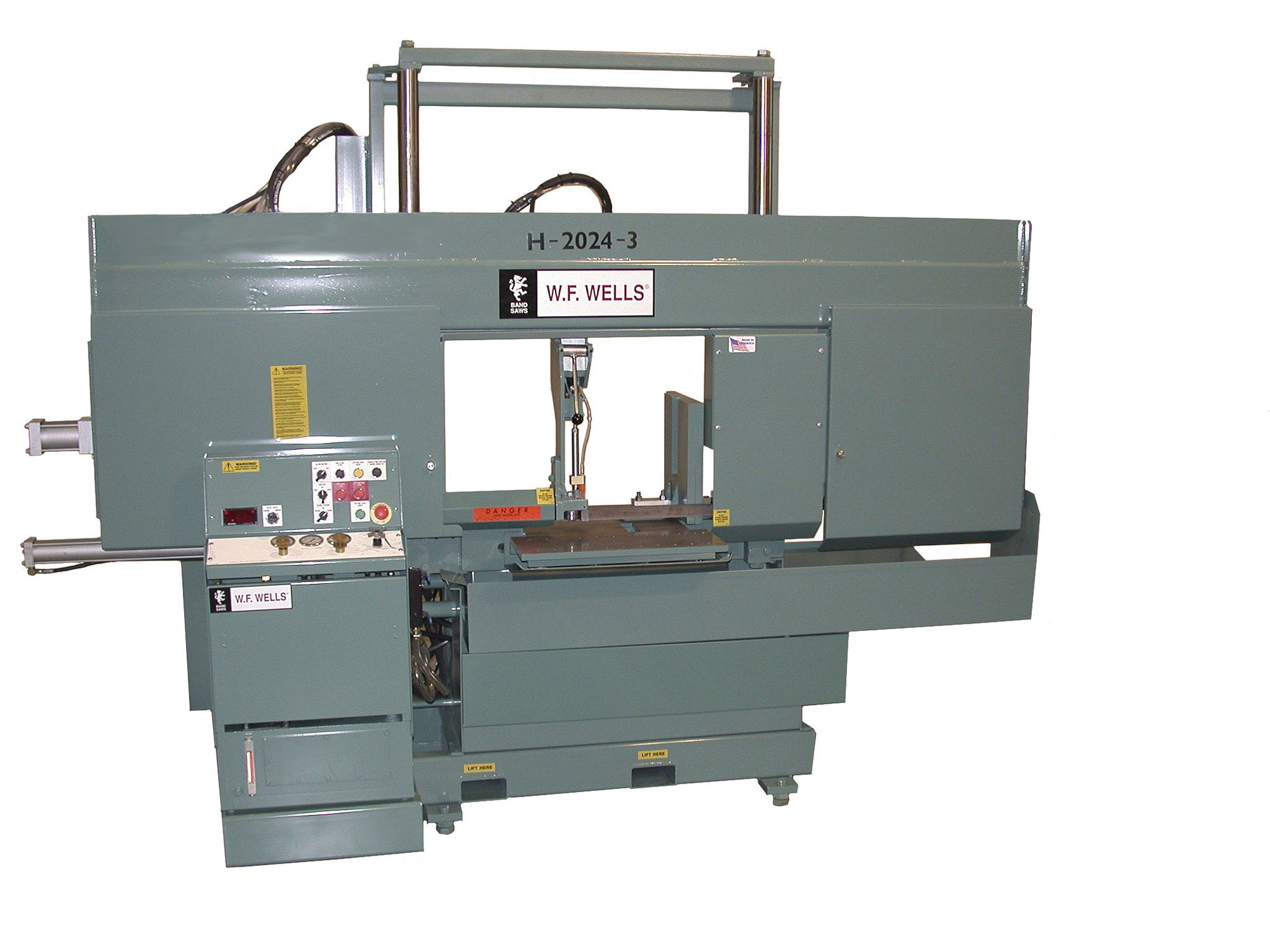

Semi-automatic dual column horizontal band saw
H-2024-3 WF Wells Inc

MACHINE SPECIFICATIONS
Capacity Rectangular @ 90° 20" H x 24" W
Round @ 90° 20" Diameter
Weight Capacity 5,000 lbs
Blade Speed 60-500 SFPM
Blade Size 11/2" x .050" x 20' 0"
Blade Guide Roller Guides with Carbide Inserts
Blade Tension Hydraulic
Bandwheel Size 22"
Vise Full Stroke Hydraulic, 15"
Blade Drive 10 HP. AC Vector
Sawing Force 0-750 lbs
Coolant Capacity 15 Gallons
Hydraulic Capacity 20 Gallons
Hydraulic Drive 2 HP Motor
Work Height 35"
Shipping Weight 3,900 lbs
Machine Dimensions 127" L x 51" W x 92" H
