High-viscosity material mixer
turbinepaddlebatch

high-viscosity material mixer
high-viscosity material mixer
Add to favorites
Compare this product


Characteristics

Technology
turbine, paddle
Batch/continuous
batch
Applications
for the food industry, for the cosmetics industry
Other characteristics
stainless steel, twin-shaft, for high-viscosity materials, 3-shaft
Capacity

Min.: 25 gal

Max.: 5,000 gal

Description

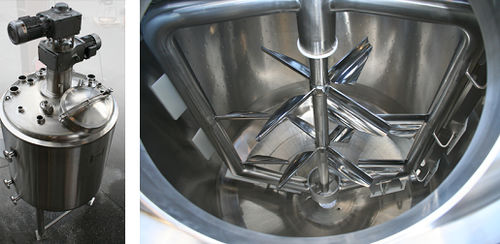

Multi Shaft high viscosity mixers are available in Offset Mount (separate mixer drives) and Concentric Mount (both mixer drives mounted in center) arrangements. Typically, a Dual Shaft high viscosity Agitator or Triple Shaft Mixer is used in blending applications where more than one mixing action is needed. The most common is the anchor slow speed paddle (often a Teflon wall scraper anchor) and a turbine agitator or high shear mixer. Multi agitator mix tanks offer great blending capability for higher viscosity mixtures and allow processors to handle a wider variety of products. For high viscosity blending applications, multiple flow impellers are arranged to assure complete product movement, very uniform heating and cooling with jacketed vessels and mixing with no dead zones. Typical operating speeds of multi agitators are: • Anchor Wall Scraper: 5-30 RPM • Top Entry Turbine Agitator: 50-350 RPM • High Shear Mixer Disperser: 1750 RPM / 3600 RPM • Bottom Entry High Shear Mixer Homogenizer: 1750 RPM / 3600 RPM Typical Mixtures made in multi shaft mix tanks: • Cosmetics, high viscosity creams, lotions, ointments • Heavy Concentrates • Purees and Slurries • Shortening and Pastes • Smoothies and Thicker Beverages White Mountain Process offers high volume production Multi Agitator Systems to very small scale lab multi-shaft mixing systems for bench scale processing and lab blending. Our specialty is sanitary and industrial mixing and blending and we are happy to quote any custom or special requirements you might have. PRE-ENGINEERED LABORATORY MULTI SHAFT MIXER AGITATOR PACKAGES • 25gal -5000gal size ranges

Catalogs

No catalogs are available for this product.

See all of White Mountain Process‘s catalogs
