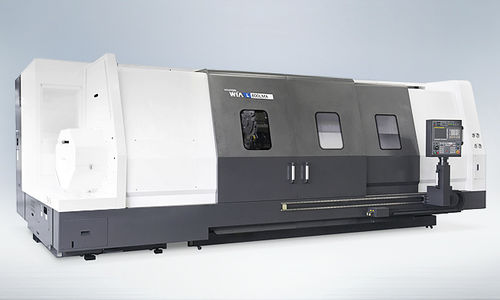

CNC turning center L800 series
2-axis12 toolshigh-performance

CNC turning center
CNC turning center
CNC turning center
CNC turning center
CNC turning center
CNC turning center
CNC turning center
CNC turning center
CNC turning center
CNC turning center
Add to favorites
Compare this product


Characteristics

Control type
CNC
Number of axes
2-axis
Number of tool stations
12 tools
Other characteristics
high-performance, precision, high-rigidity
Diameter

920 mm
(36.22 in)

Spindle speed

700 rpm
(4,398.23 rad.min-1)

Maximum part length

1,650 mm, 3,250 mm
(65 in, 128 in)

Axe X

500 mm
(20 in)

Axe Z

1,680 mm, 3,280 mm
(66 in, 129 in)

Rapids on X

12,000 mm/min
(8 in/s)

Rapids on Z

12,000 mm/min, 16,000 mm/min
(8 in/s, 10 in/s)

Nominal power

37 kW, 45 kW
(50.3 hp, 61.2 hp)

Maximum torque

5,795 Nm, 7,045 Nm
(4,274 ft.lb, 5,196 ft.lb)

Description

Sturdiness secured through the adoption of an all Axis box guide All-in-one type structure with direct link for high accuracy and sturdiness Based on double anchor method for high accuracy pretension Minimized heat deformation in the main spindle Gear box used for the main spindle
