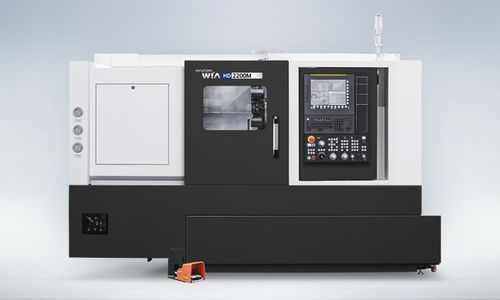

CNC turning center HD220 series 2-axis12 toolsbelt drive
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Number of tool stations
- 12 tools
- Drive system
- belt drive
- Applications
- heavy-duty
- Other characteristics
- high-precision, high-productivity, high-performance, high-rigidity
- Diameter
300 mm, 380 mm
(11.81 in, 14.96 in)- Spindle speed
3,500 rpm, 4,500 rpm
(21,991.149 rad.min-1, 28,274.334 rad.min-1)- Maximum part length
452 mm, 467 mm, 550 mm, 565 mm
(18 in, 18 in, 22 in, 22 in)- Axe X
215 mm
(8 in)- Axe Z
580 mm
(23 in)- Rapids on X
24,000 mm/min
(16 in/s)- Rapids on Z
30,000 mm/min
(20 in/s)- Nominal power
15 kW, 18.5 kW
(20.4 hp, 25.2 hp)- Maximum torque
125 Nm, 206 Nm
(92 ft.lb, 152 ft.lb)
Description
45° slanted one-piece rigid bed structure
Minimal thermal distortion
Compact design, able to install within a limited space.
Ergonomic design for convenient access to chuck and tool
