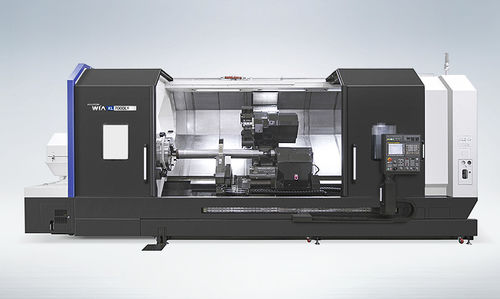

CNC turning center KL series multi-axisfor long workpieceshigh-precision
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- multi-axis
- Applications
- for long workpieces
- Other characteristics
- high-precision, high-productivity, with turret, high-rigidity
- Diameter
920 mm
(36.22 in)- Spindle speed
700 rpm, 1,500 rpm
(4,398.23 rad.min-1, 9,424.778 rad.min-1)- Maximum part length
3,250 mm
(128 in)- Axe X
500 mm
(20 in)- Axe Z
3,280 mm
(129 in)- Rapids on X
12,000 mm/min
(8 in/s)- Rapids on Z
12,000 mm/min
(8 in/s)- Nominal power
37 kW, 45 kW
(50.3 hp, 61.2 hp)- Maximum torque
5,700 Nm, 6,928 Nm
(4,204 ft.lb, 5,110 ft.lb)
Description
Multi-tasking operation with wedge type Y-axis BMT85P turret
Flat bed with rigidity increased by 25% compared to slant type bed
3 Step gear box type main spindle
Main spindle thermal displacement minimized
Rigidity secured through box guideways on all axis
