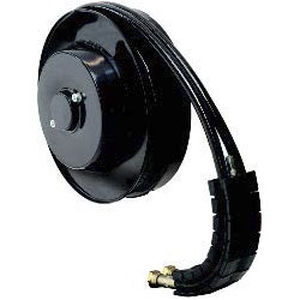

Hose reel W2R seriesself-retractingdoublethermoplastic
Add to favorites
Compare this product
Characteristics
- Type
- hose
- Drive mechanism
- self-retracting
- Configuration
- double
- Reel material
- thermoplastic
- Other characteristics
- compact
- Hose/cable length
Max.: 6 m
(19'08" )Min.: 1.5 m
(4'11" )- Pressure
300 bar, 400 bar
(4,351.1 psi, 5,801.5 psi)
Description
Two port hose reel compact serial - Product facts
-with more usable hose length due to compact design
-Max. working pressure: reel 300 bar (optional 400 bar)
-Max. flow rate: 30 l/min
-Max. hose speed: 30 m/min
-Temperature range: –20°C/+80°C (optional –40°C/+80°C)
-Hose extract standard: horizontal to the left or right; vertical upwards
(Optional downwards)
