PC 104-plus SBC / USB 2.0 / embedded / dual Ethernet
PPM-C412 WinSystems, Inc.

{{requestButtons}}

Characteristics

  • Form factor:

    PC 104-plus

  • Extension slot:

    USB 2.0

  • Other characteristics:

    embedded, dual Ethernet, industrial, rugged

Description

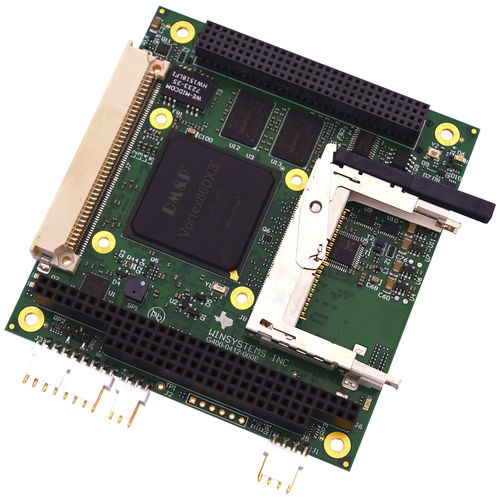

DescriptionWinSystems’ PPM-C412 single board computer (SBC) is a PC/104-Plus form factor SBC featuring the latest generation DMP® Vortex86DX3® SOC processor. Its small size, low power, rugged design, and extended operational temperature make it a great fit for industrial IoT applications and embedded systems in the industrial control, transportation, Mil/COTS, and energy markets. Performance for Industrial IoT Applications 1 GHz DMP Vortex86DX3 Processor (Dual core) CPU 2 GB DDR3-LV System RAM Low Power 10 Year Availability Rugged Design for Demanding Environments -40°C to +85°C Operating Temperature Range PC/104-Plus Small Form Factor Shock and Vibration Tested Connectivity and I/O for Embedded Systems Dual Ethernet (1x Fast Ethernet, 1x Gigabit) 4x USB 2.0 24x GPIO 5V with Event Sense 4x Serial Ports (2x RS-232, 2x RS-232/422/485) Parallel Port LPT Audio Graphics Support Dual video output (VGA, LVDS with digital backlight dimmer)
