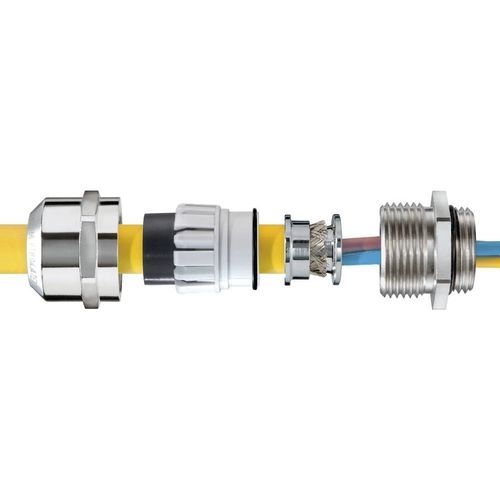

Stainless steel cable gland / explosion-proof / IP68 / IP66
ESSKE EMV-Z series WISKA Hoppmann GmbH

Characteristics

  • Material:

    stainless steel

  • Protection level:

    explosion-proof, IP68, IP66, EMC-shielded

  • Other characteristics:

    straight, threaded

  • Cable diameter:

    Min.: 4 mm

    Max.: 48 mm

  • Operating temperature:

    Min.: -40 °C (-40 °F)

    Max.: 75 °C (167 °F)

  • Thread diameter:

    Min.: 12 mm

    Max.: 63 mm

Description

Marking II 2 G Ex e IIC Gb / II 2 D Ex tb IIIC Db IP68
Approval IECEx PTB 13.0035X / PTB 05 ATEX 1098 X
Protection class IP66 / IP68 (5 bar 30 min)
Temperature range -40 °C - 75 °C
Material Clamping cage Polyamide, Gasket EPDM
