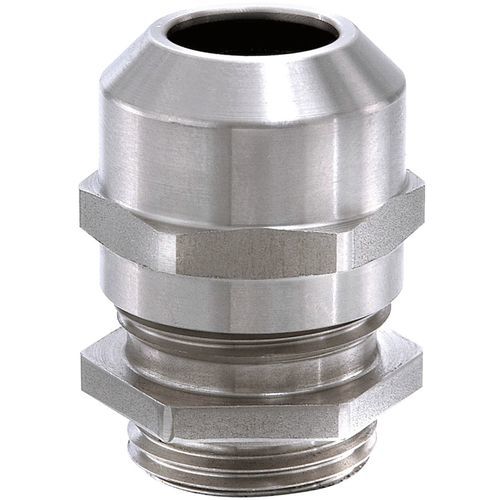

Stainless steel cable gland / IP68 / IP69 / halogen-free
ESSKV series WISKA Hoppmann GmbH

Characteristics

  • Material:

    stainless steel

  • Protection level:

    IP68, IP69, halogen-free

  • Other characteristics:

    threaded

  • Cable diameter:

    Min.: 3 mm

    Max.: 48 mm

  • Operating temperature:

    Min.: -40 °C (-40 °F)

    Max.: 100 °C (212 °F)

  • Thread diameter:

    Min.: 12 mm

    Max.: 63 mm

Description

The SPRINT Cable Gland (Metric) has an ability to work under -40 °C to 100 °C. It is mainly constructed out of stainless steel (1.4305/AISI 303), polyamide and EPDM materials. A protection class conforming EN 60 529 and DIN 40 050-T9 is incoporated. The cable gland can optionally be accompanied by a special sealing, reduction and multiple sealing sealing inserts. An extensive traction relief is made possible through its integration with WISKA patent lamella.
