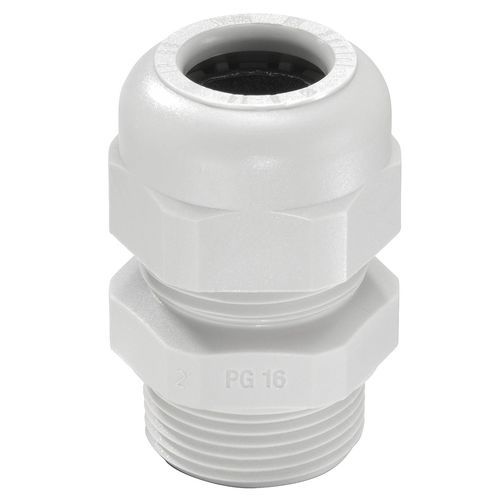

Polyamide cable gland / IP68 / halogen-free / threaded
SKV series WISKA Hoppmann GmbH


  • Material:


  • Protection level:

    IP68, halogen-free

  • Other characteristics:

    threaded, strain relief

  • Cable diameter:

    Min.: 3 mm

    Max.: 44 mm

  • Operating temperature:

    Min.: -40 °C (-40 °F)

    Max.: 100 °C (212 °F)

  • Thread diameter:

    Min.: 15 mm

    Max.: 65 mm


The EN 60 529 ,with a protection class of IP68 to 5 bar (30 min), is made up of a polyamide material.It also consists of PG 7-29 with integrated seal and PG 36-48 with a connection thread gasket. high flame protection is provided as it passes the glow wire test at 750° C specified according to the EN 60695-2-11.
The temperature range is between -20 to 80 (°C). The intermediate temperature is up to 120 °C.
