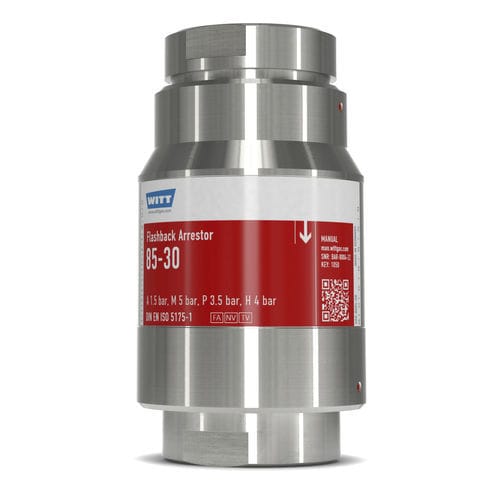

Flashback arrestor with check valve RF85-30N-ES
for the glass industryfor hydrogenfor pressure regulators

flashback arrestor with check valve
flashback arrestor with check valve
Add to favorites
Compare this product


Characteristics

Options
with check valve
Domain
for cutting and welding, for pressure regulators, for hydrogen, for the glass industry

Description

WITT Flashback Arrestors for reliable protection against dangerous reverse gas flow and flashbacks in accordance with EN 730-1 / ISO 5175. Every Arrestor 100% tested. Benefits: a large surface area flame arrestor FA of stainless steel construction extinguishes any dangerous flashback entering the device in any direction a temperature-sensitive cut-off valve TV extinguishes sustained flashbacks long before the internal temperature of the arrestors reaches a dangerous level a spring-loaded check valve NV prevents slow or sudden reverse gas flow forming explosive mixtures in the gas supply a filter at the gas inlet protects the arrestor against dirt contamination, extending the service life Operation / Usage: Flashback Arrestors are used to protect gas cylinders and pipeline outlet points (hoses and any equipment) against dangerous reverse gas flow and flashbacks ideal for use with corrosive gases in the chemical industry, process technology or in laboritories for pipeline outlets and single cylinders with high users for example supply units for gas cutting machines WITT Flashback Arrestors may be mounted in any position / orientation only one piece of equipment may be connected to a single Flashback Arrestor the maximum ambient / working temperature is 70 °C / 158 °F Maintenance: annual testing of the check valve, body leak tightness and flow capacity is recommended WITT is happy to supply special test equipment Flashback Arrestors are only to be serviced by the manufacturer. The dirt filter may be replaced by competent staff
