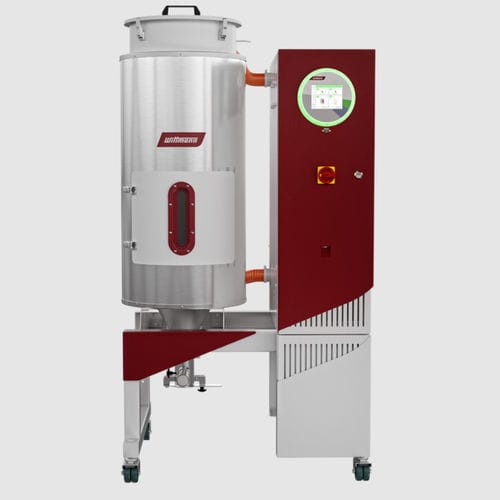

Drying hopper SILMAX E series
distributionfor plasticsabrasive

drying hopper
drying hopper
drying hopper
drying hopper
drying hopper
drying hopper
Add to favorites
Compare this product


Characteristics

Type
drying, distribution
Product applications
for plastics, abrasive, for battery
Other characteristics
mobile
Capacity

Max.: 1,200 l
(317 gal)

Min.: 100 l
(26 gal)

Description

The SILMAX drying hoppers with integrated microprocessor control are available in table versions from 100 up to 1,200 l. » Robust Stainless Steel Execution All components in contact with the material are made of stainless steel and are therefore perfectly suited for critical and abrasive applications. » Efficiency Enhancing Insulation The drying hoppers are equipped with 40 mm thick insulation across the entire height in order to reduce heat losses and increase drying efficiency. » SmartFlow Intelligent Air Distribution Automatic air distribution to adjust to different materials and fluctuating material demands. » Integrated CAN Interface Allows extensive data exchange and status forwarding between the dryer and a central system for visualization. » Convenient Clean Out Door Drying hoppers of sizes 100 l and up are equipped as standard with a clean-out door ideally suited for the respective hopper diameter. The perfect geometry of the hopper guarantees uniform drying of the material across the entire cross section. » Integrated Sight Glass For the convenient visual inspection of material flow and material level. » Material Slide Gate All drying hoppers are included as a standard with a manual slide gate. » Material Saver Function Avoids over-drying and thermal degradation of the plastic resin through short term lowering of the drying temperature during production stoppages of the processing machine. Silmax compact drying hoppers are designed for battery drying systems as well as compact portable systems. Battery drying systems are available with either 2 or 3 independent drying hoppers. SmartFlow intelligent air distribution – Automatic air distribution
