paint pump / electric / airless / spraying

Add to MyDirectIndustry favorites
paint pump / electric / airless / spraying paint pump / electric / airless / spraying


  • Media:


  • Operation:


  • Type:


  • Other characteristics:


  • Flow:

    4.2 l/min (1.1095 us gal/min)

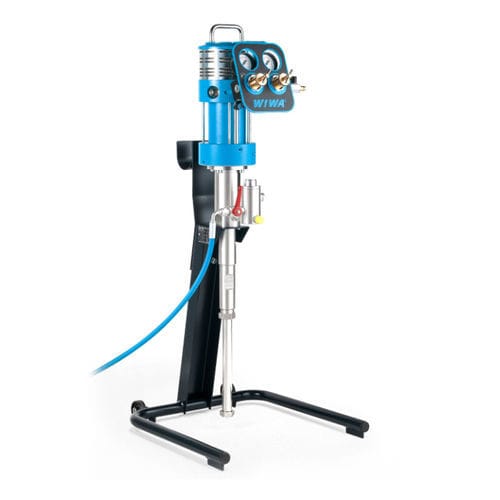

The current generation of powerful WIWA 1K Airless and AirCombi spray equipment is fast and easy to operate as all the control elements are on the front panel. It has an incorporated hose rack with uniform spray pressure for a superior spray pattern.

The hardy design has minimal wear parts and stainless steel wetted parts for easy maintenance. Designed for use in the furniture industry, joineries, spray painting shops, vehicle construction and mechanical engineering.

It has a maximum free flow output of 4.2 l/m and a 33:1 pressure ration. The output per cycle is 27 cm3 with a maximum operating pressure of 264 bar. The piston diameter of the air motor is 85 mm and the piston stroke is 75 mm.
