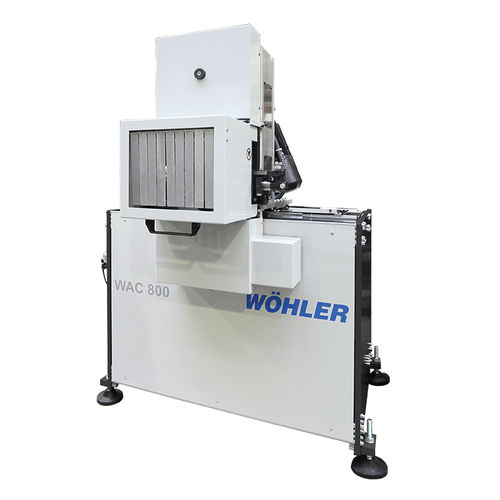

Knife cutting system WAC 800

CNC

Winding and cutting of roll brushes out of endles strip brush The WAC 800, in combination with a strip brush machine, allows for external winding of a strip brush into roll segments with a selectable number of turns. The strength of the WAC 800 lies in the integrated cutting unit, which cuts off the strip brush without stopping production after reaching the set number of turns. The number of turns and the number of roller brushes to be produced can be freely selected and adjusted via a touchscreen panel. The strip brush produced by a strip brush machine as an endless brush is fed to the WAC 800, wound into a roller brush and automatically cut after the desired number of turns. As the strip brush machine produces at a continuous speed, the WAC 800 compensates for the length produced during the cutting cycle. There are tool sets available consisting of the winding core, a pressure wheel, the strip brush guide, the cutting blade, the driving ring and optionally the anvil for all possible combinations.
