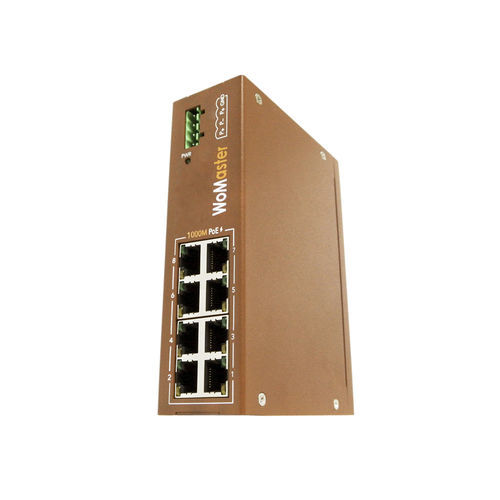

DP208 is an industrial 8-port Full-Giga Ethernet switch, delivering 8 port PoE 802.3af/at. The rugged IP40 design can stand for harsh environment and wide temperature (from -40 to 70°C) use. The compact size can fit in for space limited cabinets. The switch complies with heavy indsutrial EMC standard. The DP208 features power saving design for Efficient Power Management.
Full Gigabit Switching
・8-port Full-Giga Ethernet with Auto Negotiation
・4K MAC address table
・Support 9K Jumbo Frame
・Support Broadcast storm protection
・Stores and forwards with non-blocking switch fabric
Extreme PoE Capability
・8-port IEEE 802.3af/at compliant PoE technology, up
to 30W per port
・Max. 100W system PoE power budget
IEEE 802.3az EEE Power Management
・Energy Efficient Ethernet for low power requirement
・Idle power saving mode for energy efficiency
Rugged Mechanical Design
・Robust design protects from mechanical deformation
・IP40 ingress protection to withstand harsh environment
(Optional IP41 protection)
・Wide operating temperature range -40 ~ 70°C
・CE marking
・IEC61000-6-2/IEC61000-6-4 heavy industrial EMC
