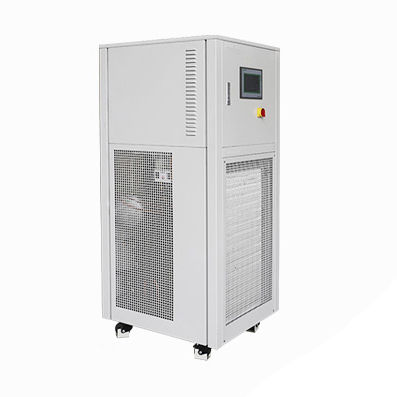

Hermetic condensing unit Small Gas Condensing System HQ gas-cooled
Add to favorites
Compare this product
Characteristics
- Compressor type
- hermetic
- Cooling system
- gas-cooled
- Power
Min.: 1.2 kW
Max.: 10 kW
Description
ModelHQ-0540HQ-1040HQ-2540HQ-5040HQ-0575WHQ-1075WHQ-2575WHQ-5075W
Gas flow5m3/h10m3/h25m3/h50m3/h5m3/h10m3/h25m3/h50m3/h
Lowest Temp.-40℃-40℃-40℃-40℃-75℃-75℃-75℃-75℃
Primary Temp.There is no-20℃-20℃-20℃-20℃
Cold box under pressure0～25bar0～25bar0～25bar0～25bar0～25bar0～25bar0～25bar0～25bar
Heat Transfer Area0.8m21.5m23m25m20.8m2*21.5m2*23m2*25m2*2
Heat Exchanger MaterialThe standard configuration is copper tube, which can be selected with SUS304\SUS316L.
Low temp. refrigerating capacity0.8kw1.5kw3kw5kw0.8kw1.5kw3kw5kw
Cooling wayAir coolingWater cooled
Air inlet orificeM16*1M24*1.5M38*1.5DN50M16*1M24*1.5M38*1.5DN50 PN25
Recovery tank2L3L10L15L2L3L10L15L
Discharge orificeM16*1M24*1.5M24*1.5M24*1.5M16*1M24*1.5M24*1.5M24*1.5
