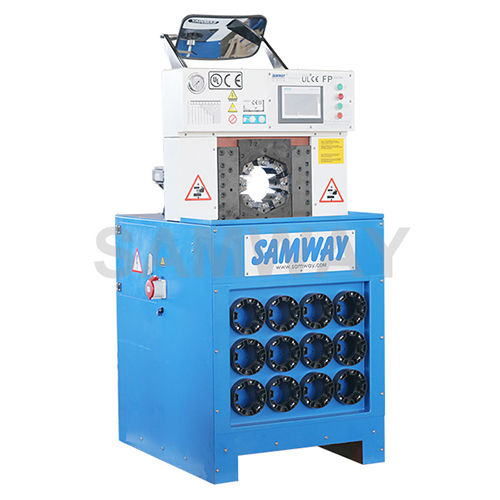

Hydraulic hose crimping machine FP145automaticPLC-controlled
Add to favorites
Compare this product
Characteristics
- Product handled
- hydraulic hose
- Operational mode
- automatic
- Other characteristics
- PLC-controlled
- Crimping force
4,600 kN
- Crimping capacity
2 in, 4 in
Description
Feature description：
● SIMENS Precision Digital Control
● Quick Change Tool and Die rack
● Designed for Mass Production
● Energy Saving and Safety Operation
● Store up to 40 sets crimping data
Main Specification
- SAMWAY FP145
Max Hydraulic Hose
- 2"6SP or 4"Industrial Hose
Crimping Range mm
- 4-124
Die Type
- P32
Master Die Length mm
- 100
Max Opening mm
- +80
Motor KW
- 7.5 by SIEMENS
Crimping Force KN
- 4600
Crimpings Per Hour
- 2000
Control
- SIEMENS Precision Digital Control
Data Storage - Store up to 40 sets of crimping data for each hose and fast recall.
Foot pedal
- Included
Die Rack
- Included
Quick Change Tool
- Included
Backstop Device
- Optional
Mirror
- Optional
Control by Pressure
- Optional
Noise Level dBA
- 70
Protection Class
- IP56
L*W*H mm
- 980*1000*1700
Weight KG
- 1350
