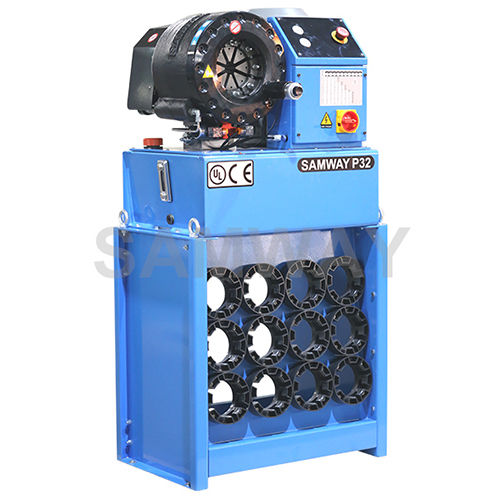

Hydraulic hose crimping machine P32Qfully-automatichydraulicfoot-operated
Add to favorites
Compare this product
Characteristics
- Product handled
- hydraulic hose
- Operational mode
- fully-automatic
- Drive type
- hydraulic, foot-operated
- Other characteristics
- PLC-controlled
- Crimping force
2,200 kN
- Crimping capacity
Max.: 50.8 mm
Min.: 4 mm
(0.2 in)
Description
Feature description：
● Full Automatic Control with Foot pedal
● Quick Change Tool and Die rack
● Energy Saving and Safety Operation
● Automatic PLC Control Modual Built in
Main Specification
- SAMWAY P32Q
Max Hydraulic Hose
- 2" 4SP
Crimping Range mm
- 4-87
Die Type
- 32
Master Die Length mm
- 80
Max Opening mm
- +32
Motor KW
- 4
Crimping Force KN
- 2200
Crimpings Per Hour
- 1200
Control
- Control with advanced programmable chip
Foot pedal
- Included
Die Rack
- Included
Quick Change Tool
- Included
Backstop Device
- Optional
Control by Pressure
- Optional
Noise Level dBA
- 65
Protection Class
- IP56
L*W*H mm
- 680*600*1400
Weight KG
- 300
