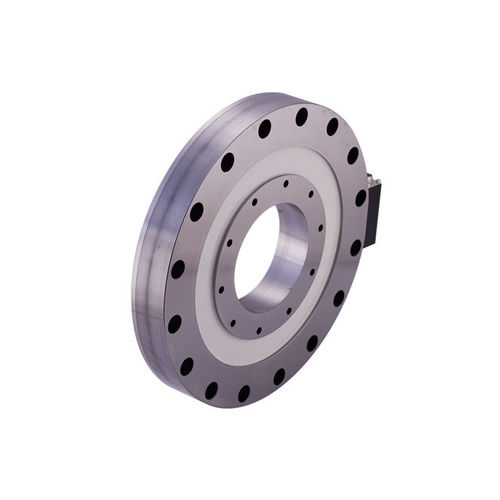

Compression load cell XC-170
ringstrain gaugecompact

compression load cell
compression load cell
compression load cell
Add to favorites
Compare this product


Characteristics

Type
compression
Form
ring
Technology
strain gauge
Other characteristics
compact, steel

Description

Very high linearity and zero stability High temperature stability Flat, compact design Suitable for high torques Customizable to different machine types Specific measuring ranges and dimensions available Functionality: The force sensors of the XC-170 series measure the injection pressure in fully electric injection molding machines behind the mixing screw. The sensor is very linear, has a very stable zero-point and an overload resistance of 150% of the final value. The massive steel construction and the sealed design (IP 54) guarantee trouble-free operation, even under harsh environmental conditions. The sensors are very temperature stable and allow a maximum consistency of the shot weight. The force sensors have either a passive strain gauge full bridge output or an amplified ± 10 V or 4 … 20 mA output signal. The measuring range can be adjusted exactly to the required injection force. The dimensions and the hole pattern can also be tailored to your application and the required force range. Individually developed sensors adapted to your task: In order to obtain reliable measurement results, it is often unavoidable to adapt the force sensors and force transducers to the specific requirements in order to best meet the environment and the measuring task. Tell us your requirements for the force sensor XC-170: Type / Description Nominal force Output signal Electrical connection (cable length / plug type) Outer diameter Inner diameter Height Mounting holes
