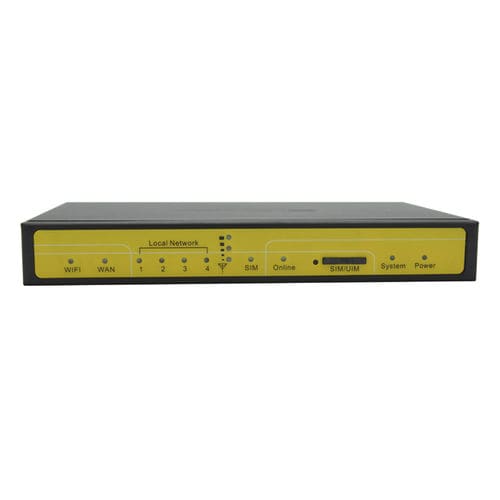

cellular communication router / Ethernet / RS232 / WiFi
F3436 Xiamen Four-Faith Communication Technology Co.,Ltd

{{requestButtons}}

Characteristics

  • Type:

    cellular

  • Network:

    Ethernet, RS232, WiFi, LAN to LAN, HSDPA, HSUPA, 3G UMTS, HSPA+, 3G GPS

  • Mounting:

    DIN rail mounted, outdoor

  • Number of ports:

    6 ports

  • Other characteristics:

    firewall

  • Applications:

    for machines with SINUMERIK 840D sl control, industrial, for the automobile industry, for IOT application, for remote PLC maintenance, for vending machine applications, metro Ethernet service transport, for remote access, for ATM application, for mobile applications, for wireless networks, M2M, for wireless sensor networks

Description

The F3434 is a cellular terminal device transmitting data by public HSUPA/HSDPA/HSPA+/WCDMA network and is a HSUPA/HSPA+/WIFI/WCDMA router.

It has a powerful 32-bit processor and an integrated operating system that works in real time.

The device is compatible with Ethernet and RS232 or RS485/RS422 depending on configuration. It has a dedicated WIFI port.

All these features combine to enable convenient and easy connectivity with a cellular network.

It facilitates connection to current serial line, Ethernet and WIFI-enabled devices with minimum programming.


Main Features:

1.Support multiple WAN access methods, including static IP,
DHCP, L2TP, PPTP,PPPOE,2G/3G/4G

2.Support double link backup between cellular and
WAN(PPPOE, ADSL) (optional)

3.Support VPN client/server(PPTP, L2TP, OPENVPN, IPSEC
and GRE)

4.Support local and remote firmware upgrade,import and
export configure file

5.Support NTP, RTC embedded

6.Support mulitiple DDNS provider service

7.Support VLANs, MAC Address clone, PPPoE Serv

The device is applicable in a vast spectrum applications

-for the automobile industry
-for remote PLC maintenance
-for vending machine applications
-for remote access
-for ATM application
-for wireless network
-for wireless sensor networks
-for M2M applications
-for IOT application
