GSM remote terminal unit / GPRS / modular / RS-232

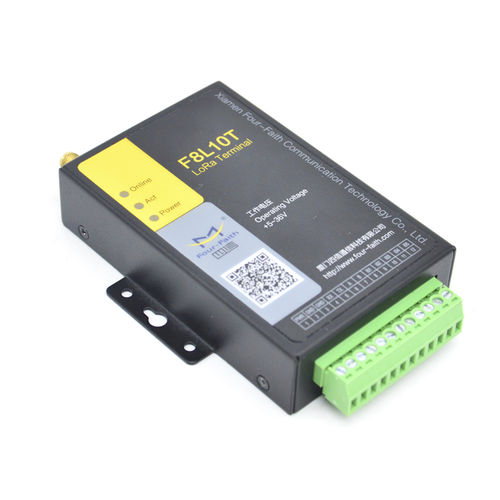

F8L10T LoRa Terminal Xiamen Four-Faith Communication Technology Co.,Ltd

{{requestButtons}}

Characteristics

  • Type:

    GSM, GPRS, modular

  • Port:

    RS-232, RS-485

  • Other characteristics:

    for the oil and gas industry

Description

F8L10T LoRa data transmission terminal is a wireless data transmission terminal based on LoRa spread spectrum technology.

At the same time using Lora wireless transmission technology for short distance data transmission.

This product adopts industrial grade Lora scheme with high performance, based on embedded real-time operating system as the software platform, while providing RS232 and RS485 (or RS422) interface, can be directly connected to the serial device, realize the transparent data transmission function; low power design, lowest power consumption is less than 5ma@ 12VDC; 5 I/O, can achieve the digital input output, analog input, pulse counting function.

● Max Transmission Distance of 8 KM
● Rich Port Interface And Easy to Use
● Excellent Anti-Interference Features
● Module Supports Over-the-Air Updates
● -148dBm Ultra-High Receiver Sensitivity
