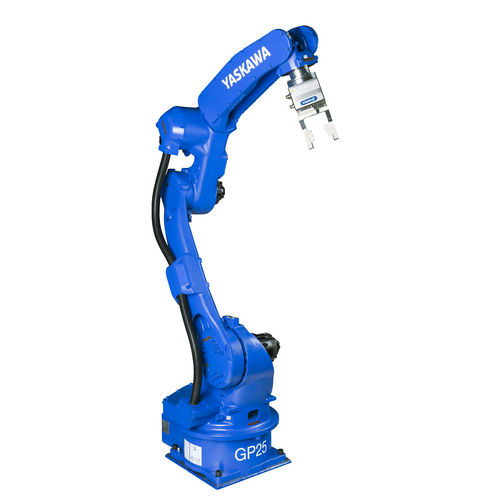

Articulated robot GP25
6-axishandlingwall-mounted

articulated robot
articulated robot
articulated robot
Add to favorites
Compare this product


Characteristics

Type
articulated
Number of axes
6-axis
Function
handling
Mounting
wall-mounted, floor-mounted, ceiling-mounted
Application domain
for the automotive industry, for the food industry, for the electronics industry
Other characteristics
compact
Payload

25 kg
(55.116 lb)

Reach

Min.: 0 mm
(0 in)

Max.: 1,730 mm
(68.11 in)

Repeatability

0.02 mm
(0.0008 in)

Description

The MOTOMAN GP25 is a compact and flexible handling robot which provides a payload of 25 kg. Easy set-up and maintenance and a wrist structure with great environment resistance improve efficiency in installation, operation and maintenance of equipment. Technical Details Controlled Axes6 Payload25 kg Max Working Range1730 mm Repeatability0.06 mm Weight250 kg Power Supply2 KVA S Axis210 º/sec L Axis210 º/sec U Axis265 º/sec R Axis420 º/sec B Axis420 º/sec T Axis885 º/sec
