Gantry crane with adjustable height
max. 400 kg | XT 540
ZALLYS S.R.L.

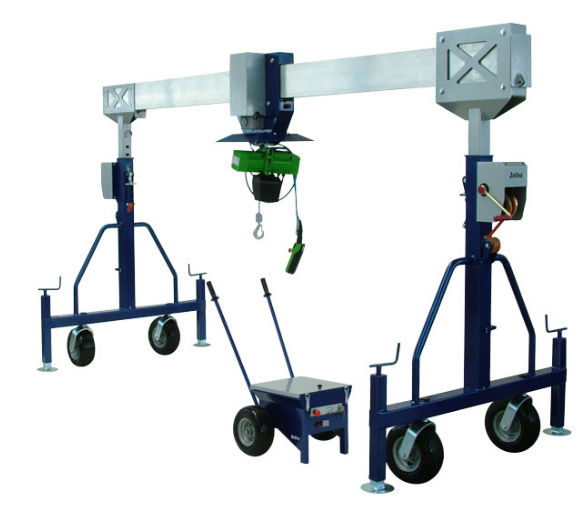

ZALLYS XT 540 - It is an electric unit designed mainly for the cemetery application and with a solid structure guarantee an easy control during the handling of loads up to 400Kg. in total safety. The light chassis completely in aluminium is very light and practical but resistant at the same time. The XT540 can be easily moved from one place to another also due to the possibility of disassemble it in three principal elements therefore a single operator is capable of assemble the unit is 60 seconds. It can be positioned to variable distances that goes from a minimum of 2 mt. up to a 4,5 mt max. The XT540 has an electric block and tackle powered by a painted steel trolley equipped with 2 batteries and a motor 800W. thank to it's pneumatic low pressure wheels it can work inside as outside. The XT540 dimensions are 4508 mm of length, 1480 mm of width. 2853 of max. height. The unit is guaranteed and CE certified following the European Normative for the safety. All Zallys vehicles are produced with high quality materials and are CE certified according to the latest European normative.
