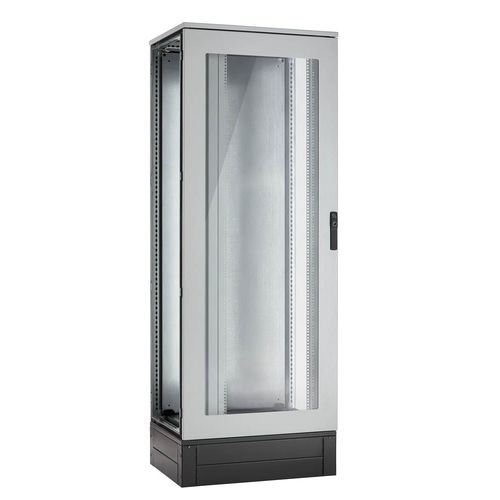

Aluminum electric cabinet DRCP seriessheet steelIK10IP66
Add to favorites
Compare this product
Characteristics
- Material
- aluminum, sheet steel
- Other characteristics
- modular, with transparent door, IK10, IP66, NEMA 12
- Width
Max.: 1,600 mm
(63 in)Min.: 600 mm
(23.6 in)- Height
1,410 mm, 1,610 mm, 1,810 mm, 2,010 mm, 2,210 mm
(55.5 in, 63.4 in, 71.3 in, 79.1 in, 87 in)- Depth
400 mm, 500 mm, 600 mm, 800 mm, 1,000 mm
(16 in, 20 in, 24 in, 31 in, 39 in)
Description
THE EQUIPMENT INCLUDES: GLASS DOOR – FRONT-INSTALLATION INTERNAL PLATE – BACK PANEL
Structure:
1,5 mm thick steel sheet drawn-columns bearing frame; drawn-columns are fixed and welded to die-cast aluminum joints. 25 mm pitch drilling scheme; roof and plinth fixed to structure.
Side and back panels:
1,5 mm thick steel sheet; polyurethane sealing gasket; fixed to structure.
Internal plate:
2 mm thick galvanised steel sheet (Sendzimir), with front or side installation by means of sliding guides; adjustable depth.
Transparent door:
Same characteristics as solid door, but it is provided with a tempered glass porthole.
BY SEPARATED ORDERING: 1,5 mm thick steel sheet internal door.
Cable entry flange:
1,5 mm steel sheet; it consists in 2 or 3 parts, with neoprene cable-tie gasket.
Earthing:
M6 pins to be welded on structure, doors and panels.
