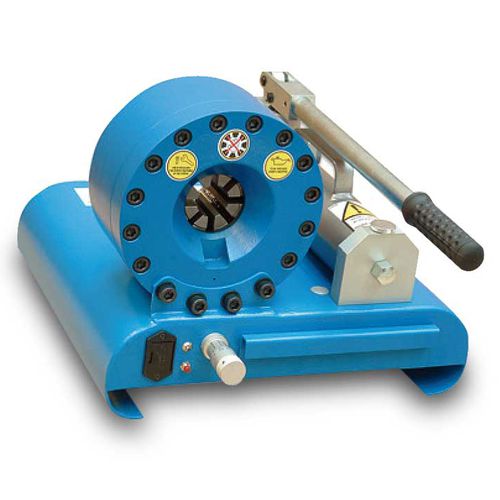

Manual press PMZ47pneumaticcrimping
Add to favorites
Compare this product
Characteristics
- Operation
- manual, pneumatic
- Function
- crimping
- Force
100 tf
- Weight
32 kg, 38 kg
(71 lb, 84 lb)
Description
Capacity - 1“ - 1"
0 Maximum Crimping - 46 mm*(1.811") - 46 mm* (1.811")
Die Opening - 0 + 20 mm (0 + 0.788") - 0 + 20 mm (0 + 0.788")
90° Fittings - 3/8" - 3/8"
DIMENSIONS LxWxH - 390x510x300 mm - 380x430x400 mm
- (15.3"x20.7"x11.8") - (14.9"x16.9"x15.7")
Required effort on the lever - 30 kg (66 Lbs) - —
Pneumatic Input - - - Max. 7 bar (100 psi)
Cylinder - Single - Acting - Singel - acting
INCLUDED ACCESSORIES
Die holder drawer
2.5 LT OIL (for pneumatic press)
