MAG welding machine MAGNA 3D
high-frequencyautomaticgantry

MAG welding machine
MAG welding machine
MAG welding machine
MAG welding machine
MAG welding machine
MAG welding machine
MAG welding machine
MAG welding machine
MAG welding machine
Add to favorites
Compare this product


Characteristics

Technique
MAG, high-frequency
Operational mode
automatic
Other characteristics
gantry, rotating-head, single-head
Power

25,000 W

Description

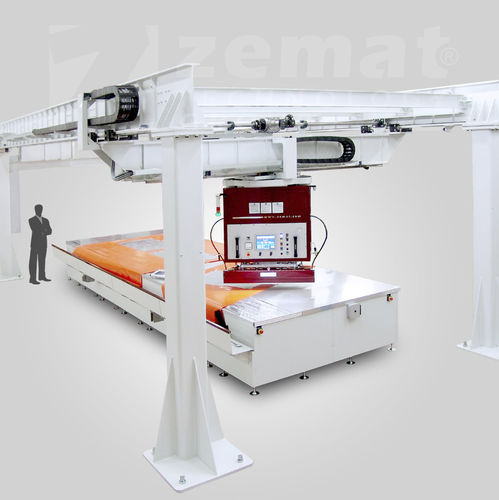

The MAGNA 3D Gantry HF Welder has output power of 15-25kW, pneumatic press, automatic PLC steering control. The machine is suspended from a gantry-system that is designed (hight and width) according to conditions and requirements of each manufacturer factory. It is equipped with a true 360+ deg. rotation function. The dimensions of the welding/work table are custom made in accordance with the welding electrode length. The MAGNA 3D Gantry machines allow open and easy access to the work table and the welding head and are used in the production process of high speed doors, tents, tensile and membrane structures, advertising billboards, oil-booms, water cisterns, pool-liners, portable satellite dishes, etc. WELDING HEAD DRIVE: Servomotors based welding head robotic drive with APEX planetary gears HIWIN linear guides for effective and precise movement Ability to set weld head track movement along any X,Y axis parameters 4 stand alone support pillars independent of work table Movement controlled by servomotor, precision of positioning +/- 0,5 mm Position controlled by magnetic ruler with multi basing system
