flexible coupling / misalignment correction / flange
ZERO-MAX

{{requestButtons}}

Characteristics

  • Type:

    flexible

  • Other characteristics:

    misalignment correction

  • Installation system:

    flange

  • Torque:

    Min.: 71.97 Nm (53.0823 ft.lb)

    Max.: 51,860 Nm (38,249.9731 ft.lb)

  • Rotational speed:

    Min.: 10 rpm (62.83 rad.min-1)

    Max.: 2,500 rpm (15,707.96 rad.min-1)

Description

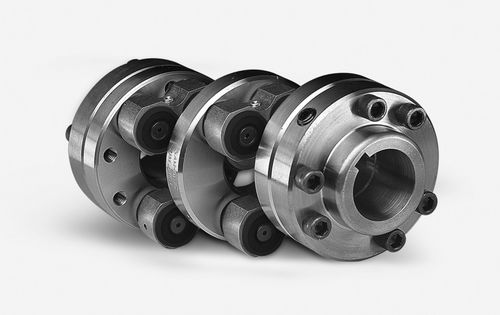

Schmidt Offset Shaft Couplings offer great flexibility in shaft displacement while maintaining undisturbed power transmission at constant angular velocity.
The Offset Couplings provide a smooth flow of power for maximum product quality. And, unlike universal joints, there is no performance loss by increasing shaft offset.

Parallel shaft displacement: 0.437" - 17.2" (linear displacement)
Torque ratings: 637 in-lbs. - 459,000 in-lbs.
Shaft speeds up to 2500 RPM
Zero-Max is especially good at making custom shaft couplings to meet your application requirements.
