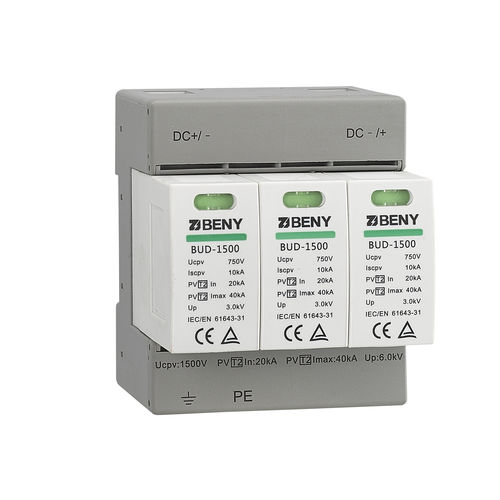

DC surge protection unit BUD-1500
type 2electronic equipmentfor photovoltaïc installations

DC surge protection unit
DC surge protection unit
Add to favorites
Compare this product


Characteristics

Type
type 2
Applications
electronic equipment, for photovoltaïc installations
Other characteristics
varistor, DIN rail, DC
Voltage

1,500 V

Primary current

40,000 A

Description

Highly recommended by Top solar inverter companies ZJBENY brand SPD is highly recommended by SolarEdge, SMA and many top inverter companies, as a part of DC surge protection solutions in solar PV systems. According to PV standard IEC 61643 The 1500V DC SPD BUD-1500 complies with standard IEC 61643-31: Low-voltage surge protective devices-Part 31: Requirements and tests methods for SPDs for photovoltaic applications. ZJBENY is the first company in China tests SPD to the PV standard and the SPD is suitable for true RoHS. We are supplying the surge devices and solutions to top inverter companies worldwide. Plug-in MOV modules The BUD-1500 surge protection device is consisting of a base part and 3 plug-in high energy MOV protection modules. Remote signalling contact for monitoring device is for options. With thermal disconnect mechanical inside for fault indication by red indicator flag. 1500V with TUV certificate. Highlight: * Type 2 DC SPD for 1500V solar photovoltaic application * According to IEC 61643-31:2018 * 3 plug-in high energy MOV * Thermal disconnect for fault indication * Remote signal contact for options * 5 years warranty and TUV certificate
