Band saw / with cooling system / variable-speed / with automatic feeder
CE 400H x 600W x 2500L GY5340 Zhejiang Weiye Sawing Machine Co., Ltd


  • Technology:


  • Other characteristics:

    with cooling system, variable-speed, with automatic feeder, CE, longitudinal, traveling-head, vertical, automatic, semi-automatic

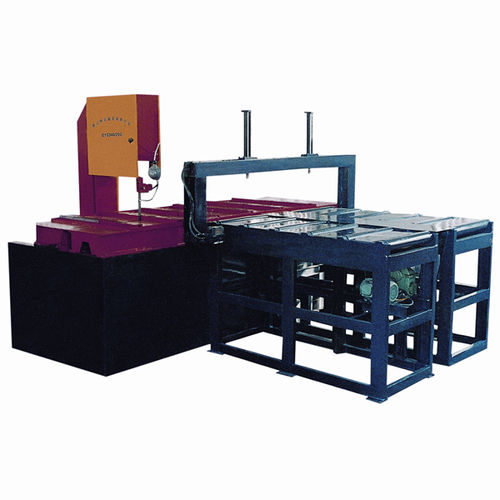

Plate/ Block type Vertical band saw machine be ideal for cross cutting metallic materials in the shape of block, plate, etc.

Capacity(mm) Height 400 Travel 2500 Throat depth 600
Blade Speed(m/min) 20~80 inverter
Blade Size(mm) 41×1.3
Main Motor 4KW
Hydraulic Motor 1.5KW
Coolant Motor 120W
Floor Space(LxWxH)(mm) 4000×2100×1900
Adopts fixed worktable and Movable saw frame
Adopts two pcs of saw wheels
Gear reducer for the main transmission
Inverter for speed variant
Saw frame movement under the guidance of linear rail, driven by the hydraulic
High sawing precision, tolerance up to 0.1mm
powered outer work table for the material feeding
Top vice
wire brush for the chip removal

Screw drive
Feed motor
Material lifter
Chip conveyor
