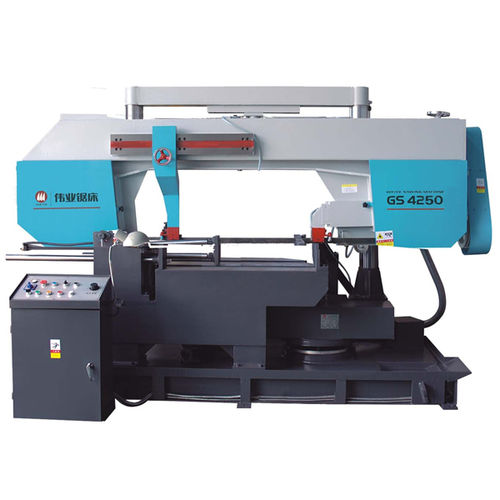

miter saw / band / for steel / for beams
CE 500Hx950W GS4250 Zhejiang Weiye Sawing Machine Co., Ltd

{{requestButtons}}

Characteristics

  • Technology:

    miter, band

  • Treated material:

    for steel

  • Applications:

    for beams

  • Other characteristics:

    with roller conveyor, variable-speed, with hydraulic vise, high-performance, CE, with automatic feeder, swivel, double-column, horizontal, semi-automatic

  • Round piece diameter:

    Max.: 500 mm

    Min.: 0 mm

Description

Manually swiveling the saw frame around the base enables mitering cutting section materials from 45 to 90 degrees.

A. Optimized machine structure: large dual columns, hydraulic cylinder connected, finely ground with hardened surface. The cross link on top adds to great structural strength. Inclined saw frame design suits section steel cutting.
B. Carbide guides for the saw blade with longer service life.
C. Adopts worm gear reducer, stable performance.
D. Variable speed adjusted by the belt pulley, optional inverter. The blade speed provided with 3 -step speed, changed by the changing location of the V belt in the belt pulley.
E .Hydraulic workpiece clamping with precision and stability
F .Manually swiveling of the saw frame clockwise enables mitering from 0 to 45 degree for various materials.
G.Safety protection device: auto-stop of the machine while the belt pulley is open, blade stalled or breakage detection unit

Option
Inverter
chip removal auger
roller conveyor(Motorized or Idle)
top vice
PLC unit
Servo swing motor
Helical gear reducer

Specifications
Capacity(mm)
90° ●500 ■450×950
45° ■400×500
Blade speed(m/min) 25.40.65
Blade Size(mm) 41x1.3
Main Motor(KW) 5.5
Hydraulic Motor(KW) 1.5
Coolant Motor(KW) 0.12
Blade Tensioning Hydraulically
Floor Space(LxWxH)(mm) 3200x2200x2380
