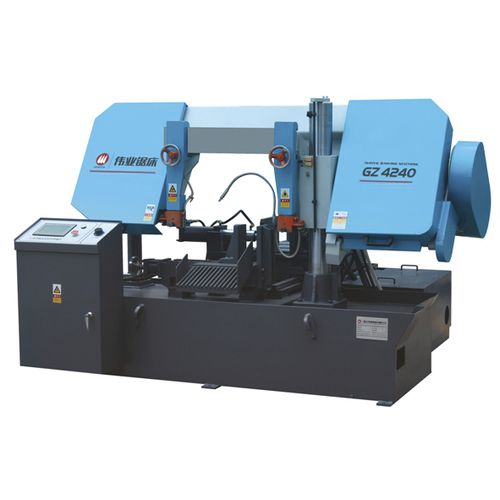

Band saw / for pipes / with cooling system / with roller conveyor
CE 400Hx400W GZ4240 Zhejiang Weiye Sawing Machine Co., Ltd

Characteristics

  • Technology:

    band

  • Applications:

    for pipes

  • Other characteristics:

    with cooling system, with roller conveyor, variable-speed, with hydraulic vise, programmable, high-performance, CE, double-column, horizontal, PLC-controlled, fully automatic

  • Round piece diameter:

    Min.: 0 mm

    Max.: 400 mm

Description

Capacity(mm) ●400 ■400×400
Blade Speed(m/min) 20、33、48、75
Blade Size(mm) 41×1.3
Main Motor 4KW
Hydraulic Motor 1.5KW
Coolant Motor 90W
Table Height 610mm
Workpiece Clamping Hydraulically
Blade Tensioning Manually
Floor Space(LxWxH)(mm) 2400×1900×1400

Features
Adopts PLC unit, touch screen
Hydraulic feeding and cutting cycle achieved
variable speed by the belt pulley and speed control valve
Auto-feeding, auto-positioning,auto-cutting
Error alarm system for maintenance
band check device

Option
Gear reducer
inverter
Top vice
hydraulic blade tensioner
Chip auger
conveyor
